New for 2012!!!

TRX have a long relationship with Dagnall Electronics and are pleased to announce we can now supply many of their standard range products. These parts are identical to the ones previously sold directly by Dagnall, and their sister company Clairtronic, and found in various electronic component catalogues. Where possible we have listed alternate part numbers to help you find the parts you require.

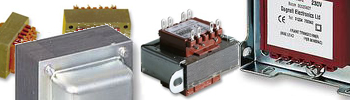

Euro PCB ▼

Euro PCBDesigned, manufactured and tested in accordance with;
BS3535, EN60742*, EN61558*, EN60950
CE Marked
Single 230V or Dual 115V primaries
Comprehensive choice of secondary voltages
3, 6, 12VA rating
Flame retardant bobbins and shrouds
Fully shrouded construction

Data Sheets 3VA 6VA 12VA



Euro Chassis ▼

Euro PCBDesigned, manufactured and tested in accordance with;
BS3535, EN60742*, EN61558*, EN60950
CE Marked
Single 230V or Dual 115V primaries
Comprehensive choice of secondary voltages
6 to 200VA rating
Flame retardant bobbins and shrouds
Fully shrouded construction

Data Sheets 6VA 12VA 20VA 50VA 75VA 100VA 200VA



Cross Reference ▼
DagnallClairtronicVAPriSecRangeDatasheet
D300011-300032306+6Euro PCBEP3
D300111-300132309+9
D300211-3002323012+12
D300311-3003323015+15
D300411-30043115+1156+6
D300511-30053115+1159+9
D300611-30063115+11512+12
D300711-30073115+11515+15
D300811-300862306+6Euro PCBEP6
D300911-300962309+9
D301011-3010623012+12
D301111-3011623015+15
D301211-30126115+1156+6
D301311-30136115+1159+9
D301411-30146115+11512+12
D301511-30156115+11515+15
D301611-3016122306+6Euro PCBEP12
D301711-3017122309+9
D301811-30181223012+12
D301911-30191223015+15
D302011-302012115+1156+6
D302111-302112115+1159+9
D302211-302212115+11512+12
D302311-302312115+11515+15
D302411-30246230V6+6VEuro ChassisEC6
D302511-30256230V9+9V
D302611-30266230V12+12V
D302711-30276230V15+15V
D302811-30286115+115V6+6V
D302911-30296115+115V9+9V
D303011-30306115+115V12+12V
D303111-30316115+115V15+15V
D303211-303212230V6+6VEuro ChassisEC12
D303311-303312230V9+9V
D303411-303412230V12+12V
D303511-303512230V15+15V
D303611-303612115+115V6+6V
D303711-303712115+115V9+9V
D303811-303812115+115V12+12V
D303911-303912115+115V15+15V
D304011-304020230V6+6VEuro ChassisEC20
D304111-304120230V9+9V
D304211-304220230V12+12V
D304311-304320230V15+15V
D304411-304420115+115V6+6V
D304511-304520115+115V9+9V
D304611-304620115+115V12+12V
D304711-304720115+115V15+15V
D304811-304850230V6+6VEuro ChassisEC50
D304911-304950230V9+9V
D305011-305050230V12+12V
D305111-305150230V15+15V
D305211-305250115+115V6+6V
D305311-305350115+115V9+9V
D305411-305450115+115V12+12V
D305511-305550115+115V15+15V
D305611-305675230V6+6VEuro ChassisEC75
D305711-305775230V9+9V
D305811-305875230V12+12V
D305911-305975230V15+15V
D306011-306075230V50+50V
D306111-306175115+115V6+6V
D306211-306275115+115V9+9V
D306311-306375115+115V12+12V
D306411-306475115+115V15+15V
D306511-306575115+115V50+50V
D306611-3066100230V9+9VEuro ChassisEC100
D306711-3067100230V12+12V
D306811-3068100230V15+15V
D306911-3069100230V50+50V
D307011-3070100115+115V9+9V
D307111-3071100115+115V12+12V
D307211-3072100115+115V15+15V
D307311-3073100115+115V50+50V
D307411-3074200230V9+9VEuro ChassisEC200
D307511-3075200230V12+12V
D307611-3076200230V15+15V
D307711-3077200230V50+50V
D307811-3078200115+115V9+9V
D307911-3079200115+115V12+12V
D308011-3080200115+115V15+15V
D308111-3081200115+115V50+50V
